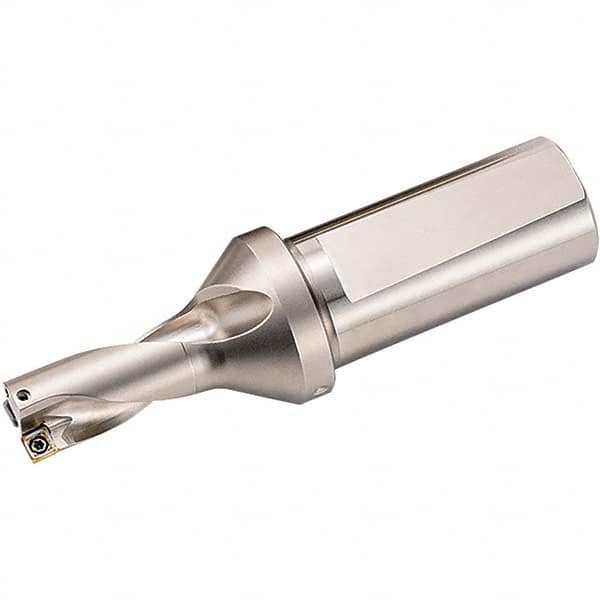

Kyocera - 219.08mm Max Drill Depth, 6xD, 36.53mm Diam, Indexable Insert Drill
Item #: 10625473
Brand: Kyocera
Model #: 8861084
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (mm) | 36.53 |
| Maximum Drill Depth (mm) | 219.08 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 6xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 85.00 |
| Insert Compatibility | SCMT110410; SCMT110406 |
| Body Length (mm) | 42.00 |
| Shank Length (mm) | 43.00 |
| Collar Diameter (mm) | 27.00 |
| Series | DRV Magic Drill |
