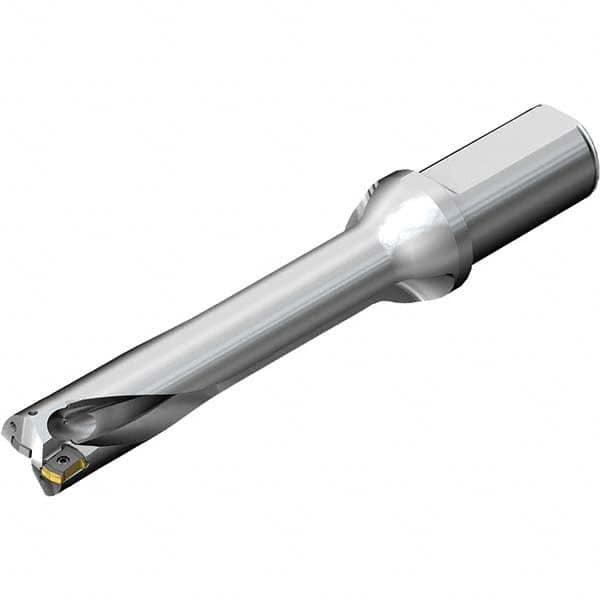

Sandvik Coromant - 7.81" Max Drill Depth, 5xD, 1.562" Diam, Indexable Insert Drill
Item #: 96180245
Brand: Sandvik Coromant
Model #: 7548953
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-05 |
| Drill Diameter (Decimal Inch) | 1.5620 |
| Maximum Drill Depth (Decimal Inch) | 7.8100 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 11.8789 |
| Insert Compatibility | DS20-0508-C |
| Body Length (Decimal Inch) | 7.9640 |
| Series | CoroDrill DS20 |
