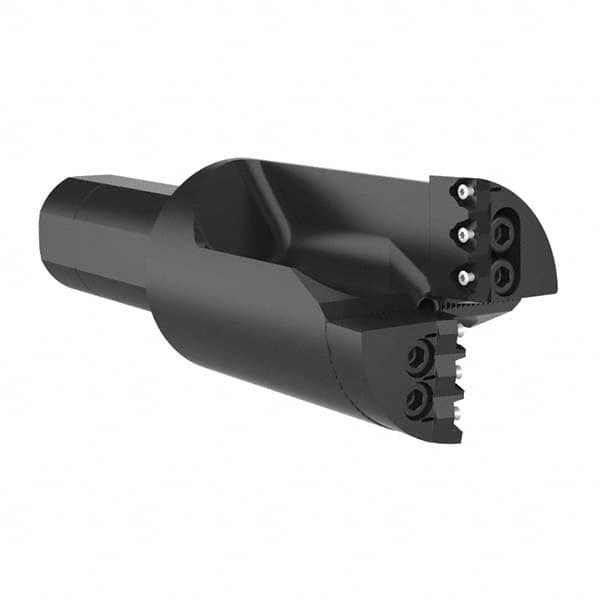

Allied Machine and Engineering - 3-31/64" Max Drill Depth, 1xD, 81.3mm Diam, Indexable Insert Drill
Item #: 50165513
Brand: Allied Machine and Engineering
Model #: SP52X10-200L
| Product Specifications | |
|---|---|
| Drill Style | SP52 |
| Drill Diameter (mm) | 81.30 |
| Drill Diameter (Decimal Inch) | 3.2000 |
| Maximum Drill Depth (Inch) | 3-31/64 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 3.4000 |
| Maximum Drill Diameter (mm) | 86.40 |
| Overall Length/Projection (Inch) | 9-37/64 |
| Insert Compatibility | OP-05T308 |
| Body Length (Decimal Inch) | 5.0781 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
