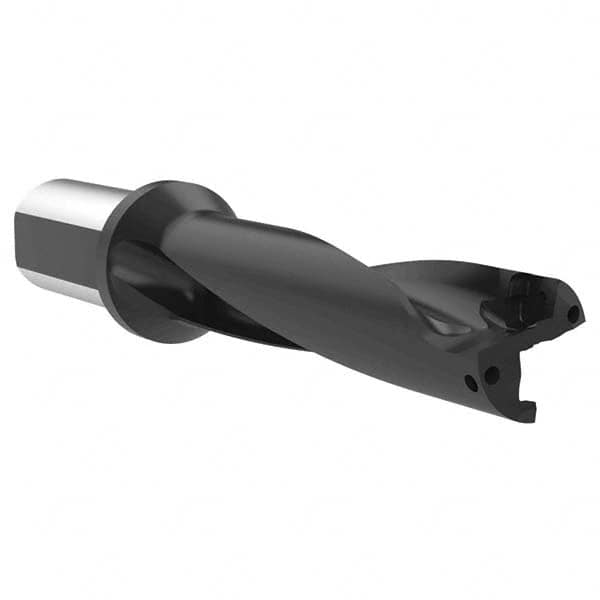

Allied Machine and Engineering - 108mm Max Drill Depth, 4xD, 27mm Diam, Indexable Insert Drill
Item #: 12328068
Brand: Allied Machine and Engineering
Model #: D4092700M-32FM
| Product Specifications | |
|---|---|
| Drill Style | D409 |
| Drill Diameter (mm) | 27.00 |
| Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Depth (mm) | 108.00 |
| Shank Type | Flange |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (mm) | 27.00 |
| Overall Length/Projection (mm) | 189.70 |
| Insert Compatibility | 4T-09T306 |
| Body Length (mm) | 130.70 |
| Shank Length (mm) | 59.00 |
| Collar Diameter (mm) | 41.00 |
| Series | 4Tex |
