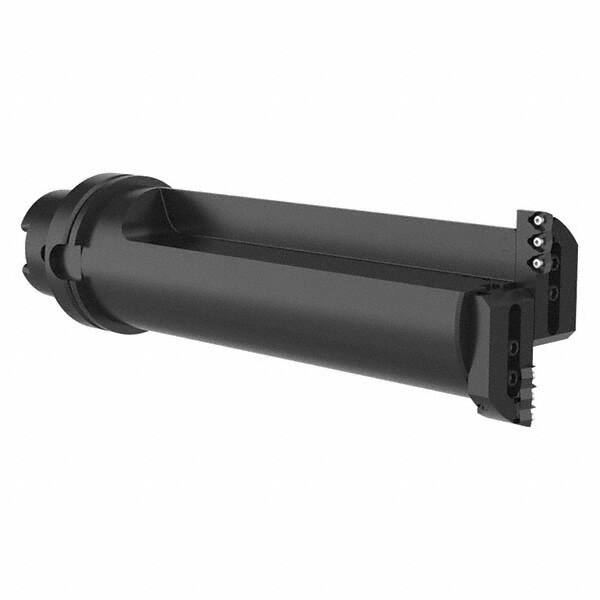

Allied Machine and Engineering - 10-33/64" Max Drill Depth, 4.12" Diam, Indexable Insert Drill
Item #: 12328795
Brand: Allied Machine and Engineering
Model #: OP4-1L-HSK100
| Product Specifications | |
|---|---|
| Drill Style | OP |
| Drill Diameter (Decimal Inch) | 4.1200 |
| Maximum Drill Depth (Inch) | 10-33/64 |
| Shank Type | Taper Shank |
| Taper Size | HSK 100A/C |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 5.6200 |
| Overall Length/Projection (Inch) | 13-15/32 |
| Insert Compatibility | OP-05T308 |
| Series | Opening Drill |
