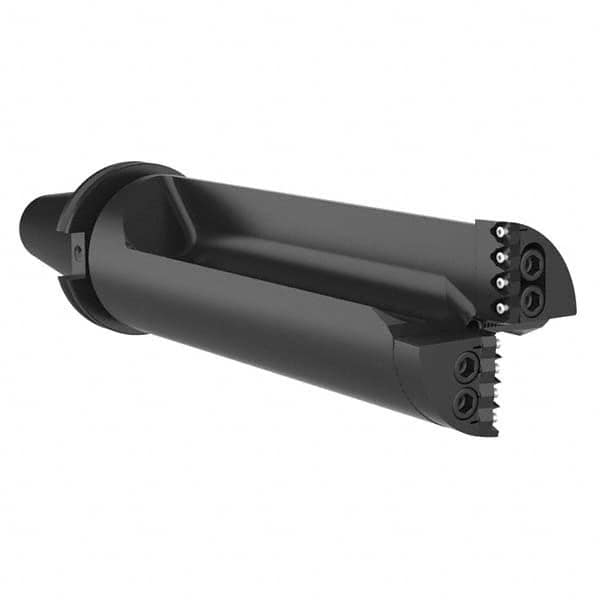

Allied Machine and Engineering - 9-7/16" Max Drill Depth, 2.5xD, 91.4mm Diam, Indexable Insert Drill
Item #: 12329090
Brand: Allied Machine and Engineering
Model #: SP56X25-CV50
| Product Specifications | |
|---|---|
| Drill Style | SP56 |
| Drill Diameter (mm) | 91.40 |
| Drill Diameter (Decimal Inch) | 3.6000 |
| Maximum Drill Depth (Inch) | 9-7/16 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 8 |
| Maximum Drill Diameter (Decimal Inch) | 3.8000 |
| Maximum Drill Diameter (mm) | 96.50 |
| Overall Length/Projection (Inch) | 12-11/16 |
| Insert Compatibility | OP-05T308 |
| Series | Revolution Drill |
