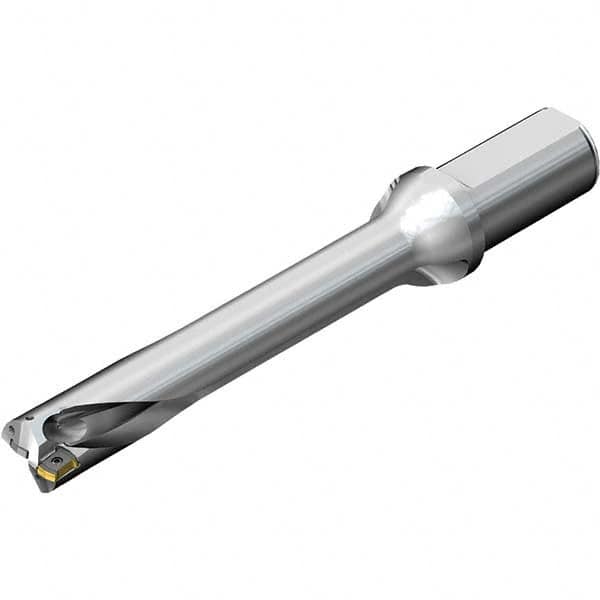

Sandvik Coromant - 3-3/4" Max Drill Depth, 6xD, 0.6252" Diam, Indexable Insert Drill
Item #: 17433509
Brand: Sandvik Coromant
Model #: 7548794
| Product Specifications | |
|---|---|
| Drill Style | DS20..LXxx-06 |
| Drill Diameter (Decimal Inch) | 0.6252 |
| Maximum Drill Depth (Inch) | 3-3/4 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 6xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 6.5345 |
| Insert Compatibility | DS20-0104-C |
| Body Length (Decimal Inch) | 3.8610 |
| Series | CoroDrill DS20 |
