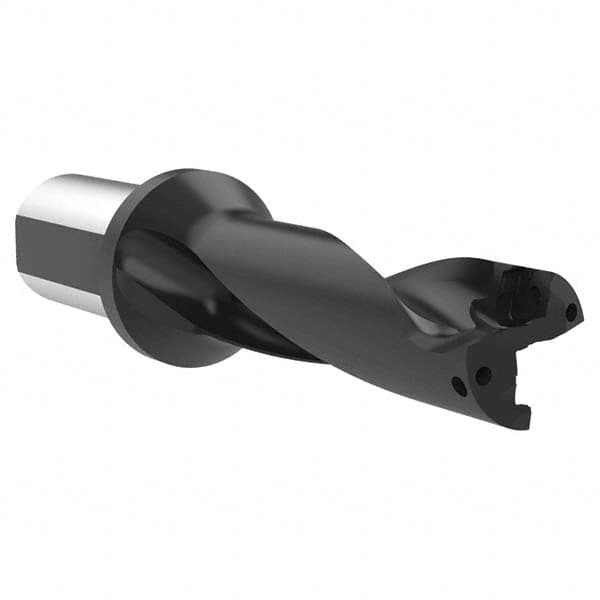

Allied Machine and Engineering - 3.78" Max Drill Depth, 3xD, 32mm Diam, Indexable Insert Drill
Item #: 12326963
Brand: Allied Machine and Engineering
Model #: D3113200M-150F
| Product Specifications | |
|---|---|
| Drill Style | D311 |
| Drill Diameter (mm) | 32.00 |
| Drill Diameter (Decimal Inch) | 1.2600 |
| Maximum Drill Depth (Decimal Inch) | 3.7800 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2600 |
| Maximum Drill Diameter (mm) | 32.00 |
| Overall Length/Projection (Decimal Inch) | 7.9290 |
| Insert Compatibility | 4T-11T306 |
| Body Length (Decimal Inch) | 5.2130 |
| Shank Length (Decimal Inch) | 2.7160 |
| Collar Diameter (Decimal Inch) | 2.1260 |
| Series | 4Tex |
