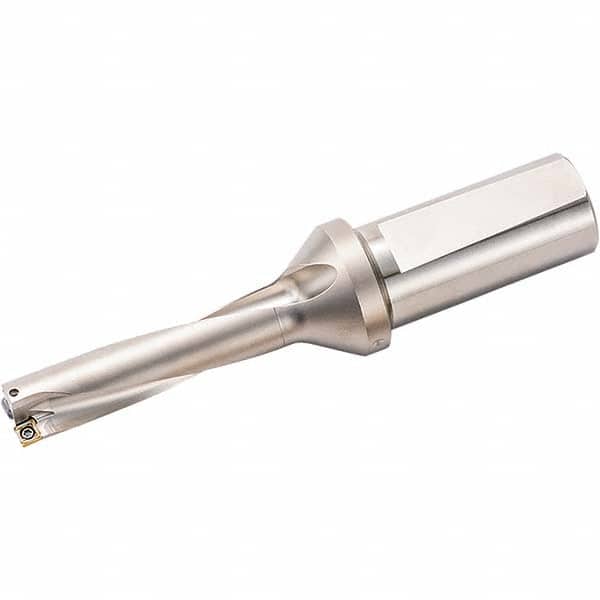

Kyocera - 5.1969" Max Drill Depth, 4xD, 1.2992" Diam, Indexable Insert Drill
Item #: 10624955
Brand: Kyocera
Model #: 8862940
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Depth (Decimal Inch) | 5.1969 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 4.2990 |
| Insert Compatibility | SCMT110410; SCMT110406 |
| Body Length (Decimal Inch) | 2.6060 |
| Shank Length (Decimal Inch) | 1.6930 |
| Collar Diameter (Decimal Inch) | 1.0630 |
| Series | DRV Magic Drill |
