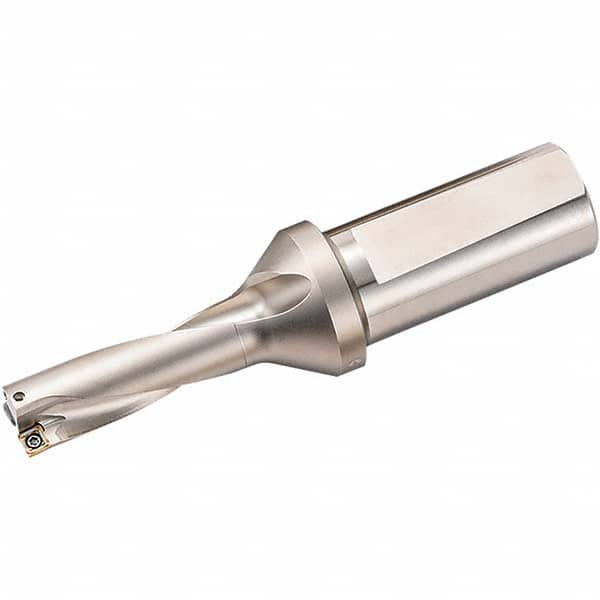

Kyocera - 1-1/2" Max Drill Depth, 3xD, 1/2" Diam, Indexable Insert Drill
Item #: 10625481
Brand: Kyocera
Model #: 8861072
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Inch) | 1/2 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 94.00 |
| Insert Compatibility | LCMT030205; LCMT030203 |
| Body Length (mm) | 51.00 |
| Shank Length (mm) | 43.00 |
| Collar Diameter (mm) | 27.00 |
| Series | DRV Magic Drill |
