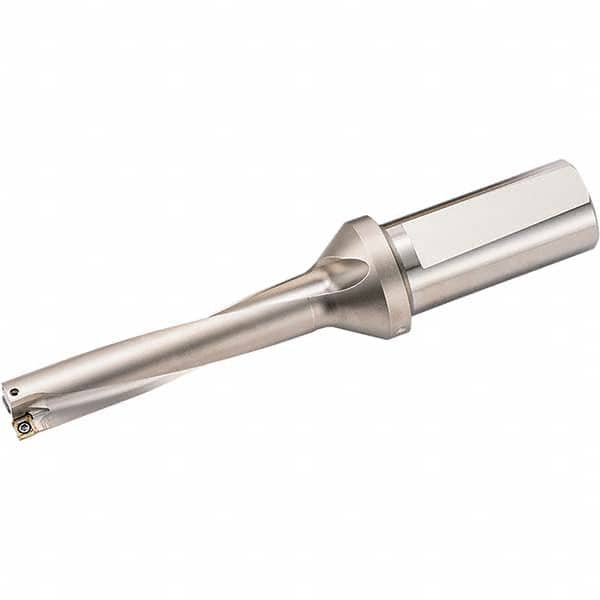

Kyocera - 39mm Max Drill Depth, 3xD, 13mm Diam, Indexable Insert Drill
Item #: 10625663
Brand: Kyocera
Model #: 8861100
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (mm) | 13.00 |
| Maximum Drill Depth (mm) | 39.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 270.00 |
| Insert Compatibility | LCMT030205; LCMT030203 |
| Body Length (mm) | 201.00 |
| Shank Length (mm) | 69.00 |
| Collar Diameter (mm) | 49.00 |
| Series | DRV Magic Drill |
