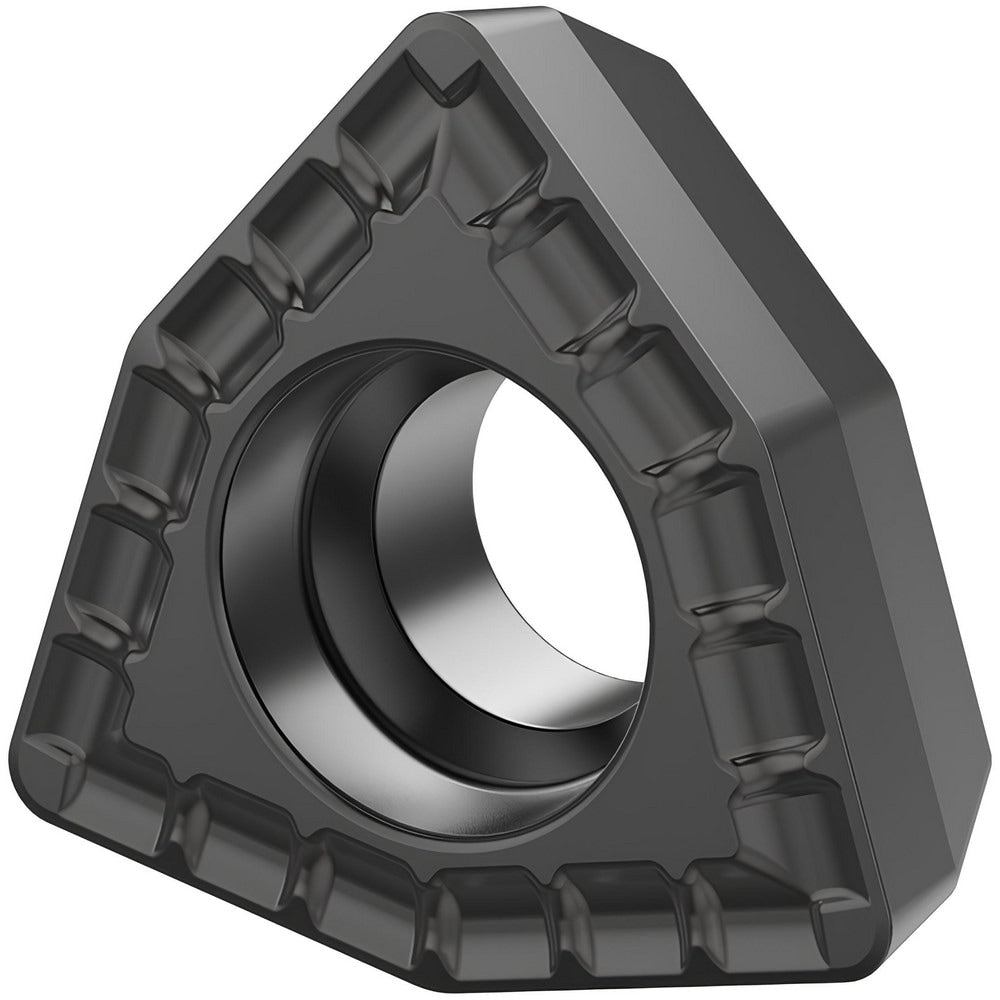

Indexable Drill Inserts; Insert Style: DFT; Insert Material: Carbide; Manufacturer Grade: KCMS35; Thickness (mm): 3.75
Item #: 02531390
Brand: Kennametal
Model #: 7064727
Product Specifications
| Insert Style | DFT |
| Insert Material | Carbide |
| Manufacturer Grade | KCMS35 |
| Thickness (mm) | 3.75 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (Inch) | 1/32 |
| Chipbreaker | MD |
| Series | Drill Fix |
| Shape | Trigon |
| Relief Angle | 8 |
| Ansi Code | DFT06T308MD |
| Iso Code | DFT06T308MD |
| Compatible Drill Style | DFT |
| Insert Size | 06 |
| Width (mm - 2 Decimals) | 6.62 |
| Length (Mm) | 6.62 |
| Included Angle Degree | 8 |
| Coating/Finish | AlTiN |
| Insert Size Code | 06 |
| UNSPSC Code | 23242105 |
