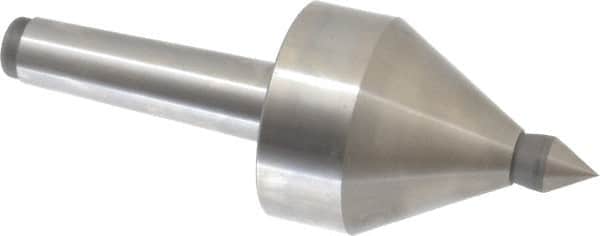

Royal Products - MT3 Taper Shank, 2-1/2" Head Diam 5,000 & 5,685 Lb Capacity Live Center - 4,000 Max RPM, 2.6" Head Length, 5/8" Point Diam, 15/16" Point Len, 685 Lb Max Workpc, 6-15/16" OAL, 5/8" Tip Diam, Long Point
Item #: 01028364
Brand: Royal Products
Model #: 10833
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 685.00 |
| Point Style | Long |
| Point Diameter (Inch) | 5/8 |
| Point Diameter (Decimal Inch) | 0.6250 |
| Tip Diameter (Inch) | 5/8 |
| Tip Diameter (Decimal Inch) | 0.6250 |
| Point Length (Inch) | 15/16 |
| Point Length (Decimal Inch) | 0.9375 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5000.00; 5685.00 |
| Thrust Load (Lb.) | 5000.00 |
| Radial Load (Lb.) | 685.00 |
| Head Diameter (Decimal Inch) | 2.5000 |
| Head Diameter (Inch) | 2-1/2 |
| Head Length (Decimal Inch) | 2.6000 |
| Taper Length (Inch) | 3-3/16 |
| Shank Length (Decimal Inch) | 3.4375 |
| Overall Length (Inch) | 6-15/16 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4000 |
| Material | Steel |
| Carbide-Tipped | No |
