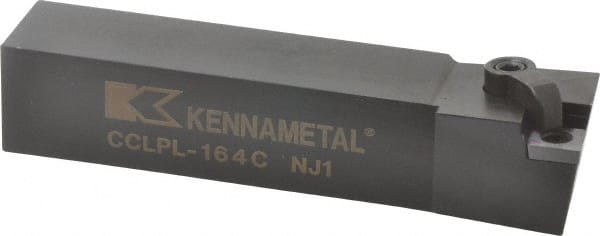

Kennametal - LH CCLP 3.5° Positive Rake Indexable Turning Toolholder
Item #: 01038850
Brand: Kennametal
Model #: 1096899
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | CCLP |
| Rake | Positive |
| Rake Angle | 3.5 |
| Series | Kendex |
| Lead Angle | 5 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Compatibility | CP..42. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| Through Coolant | No |
| OverallLength (mm) | 127.00 |
