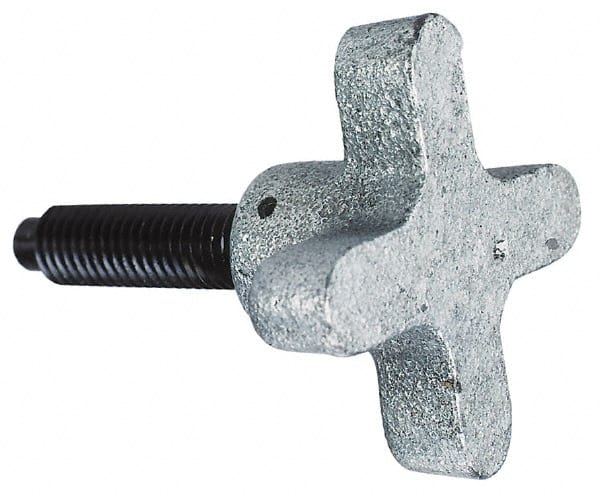

Morton Machine Works - M12x1.75 Lobed Shoulder Dog Point Tip Grade C-12L14 Steel Thumb Screw - 76mm OAL, 63.5mm Head Diam x 38mm Head Height, Black Oxide Finish
Item #: 01059807
Brand: Morton Machine Works
Model #: HKS-97
Exact Tooling IR#: 04
Features and Benefits
Lobed head types have rounded points protruding from the core of the head. The valleys between the points allow for easy gripping and tightening by hand.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Thread Size | M12x1.75 |
| Head Type | Lobed |
| Shoulder Type | Shoulder |
| Tip Type | Dog Point |
| Material | Steel |
| Material Grade | C-12L14 |
| Overall Length (mm) | 76.00 |
| Finish/Coating | Black Oxide |
| Head Diameter (mm) | 63.50 |
| Head Height (mm) | 38.00 |
| Thread Standard | Metric Coarse |
| Head Material | Cast Iron |
| Tip Length (mm) | 6.50 |
| Tip Diameter (mm) | 10.00 |
| Tip Material | Cast Iron |
