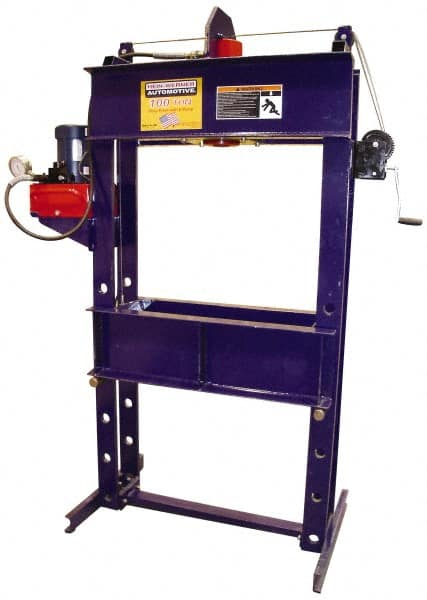

Omega Lift Equipment - 100 Ton Hydraulic Shop Press - 10 Inch Stroke, 1 HP, Single Phase
Item #: 01066315
Brand: Omega Lift Equipment
Model #: HW93610
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Hydraulic |
| Pressure (Ton) | 100 |
| Stroke (Inch) | 10 |
| Maximum Ram to Table (Inch) | 51 |
| Minimum Ram to Table (Inch) | 11-1/4 |
| Ram Size (Decimal Inch) | 4.1300 |
| Distance Between Uprights (Inch) | 35 |
| Table Length (Inch) | 35-1/2 |
| Table Depth (Inch) | 16 |
| Horsepower (HP) | 1.00 |
| Voltage | 115 |
| Phase | 1 |
| Base Width/Diameter (Inch) | 63 |
| Base Depth (Inch) | 30 |
| Overall Height (Inch) | 89-1/2 |
