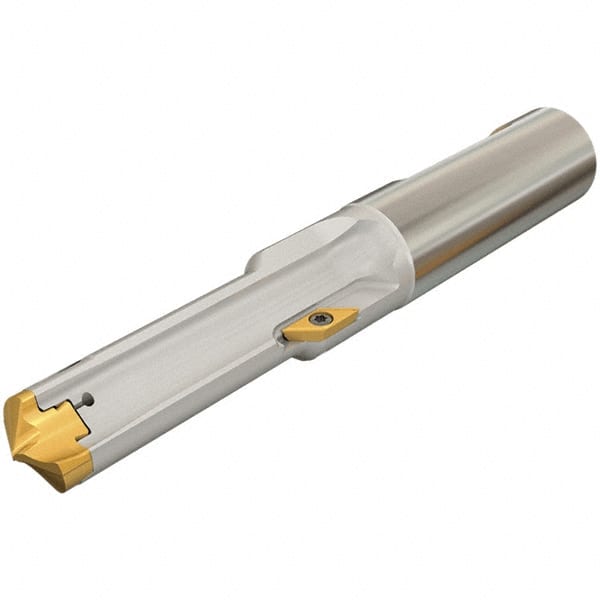

Iscar - 8.3 to 8.99mm Diam, 0.18xD, 26mm Max Depth, 14mm Shank Diam, 91.5mm OAL, Replaceable Tip Drill - AOMT, IDI-SG, IDI-SK Insert, 8 Seat Size, DCT Toolholder, Series Pre-Thread
Item #: 01078807
Brand: Iscar
Model #: 3201004
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Pre-Thread |
| Minimum Drill Diameter (mm) | 8.30 |
| Maximum Drill Diameter (mm) | 8.99 |
| Drill Depth by Diameter Ratio | 0.18xD |
| Maximum Drill Depth (mm) | 26.00 |
| Shank Diameter (mm) | 14.00 |
| Insert Style | AOMT; IDI-SG; IDI-SK |
| Insert Seat Size | 8 |
| Toolholder Style | DCT |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 46.50 |
| Overall Length (mm) | 91.50 |
| Shank Length (mm) | 45.00 |
