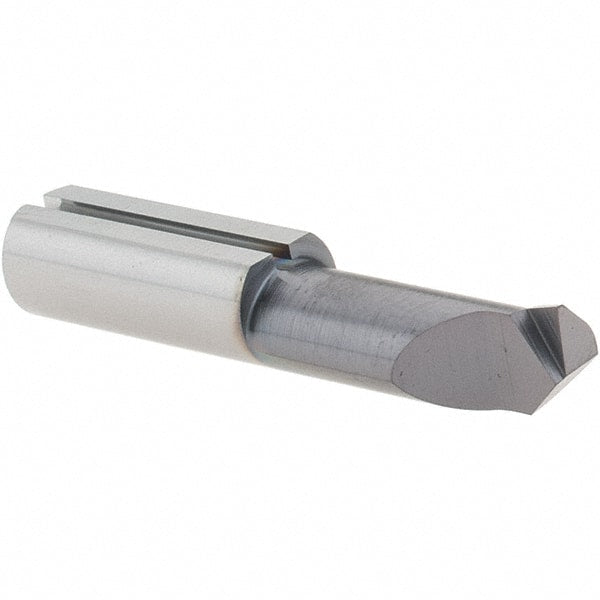

Iscar - 6mm Min Bore Diam, 30mm Max Bore Depth, 6mm Shank Diam, Boring Bar - 0.002" Corner Radius, Right Hand Cut, Solid Carbide, TiAlN/TiN Finish
Item #: 01096759
Brand: Iscar
Model #: 6403995
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.2362 |
| Minimum Bore Diameter (mm) | 6.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1811 |
| Maximum Bore Depth (mm) | 30.00 |
| Material | Solid Carbide |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 30.00 |
| Cutting Direction | Right Hand |
| Finish/Coating | TiAlN/TiN |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturer Grade | IC908 |
