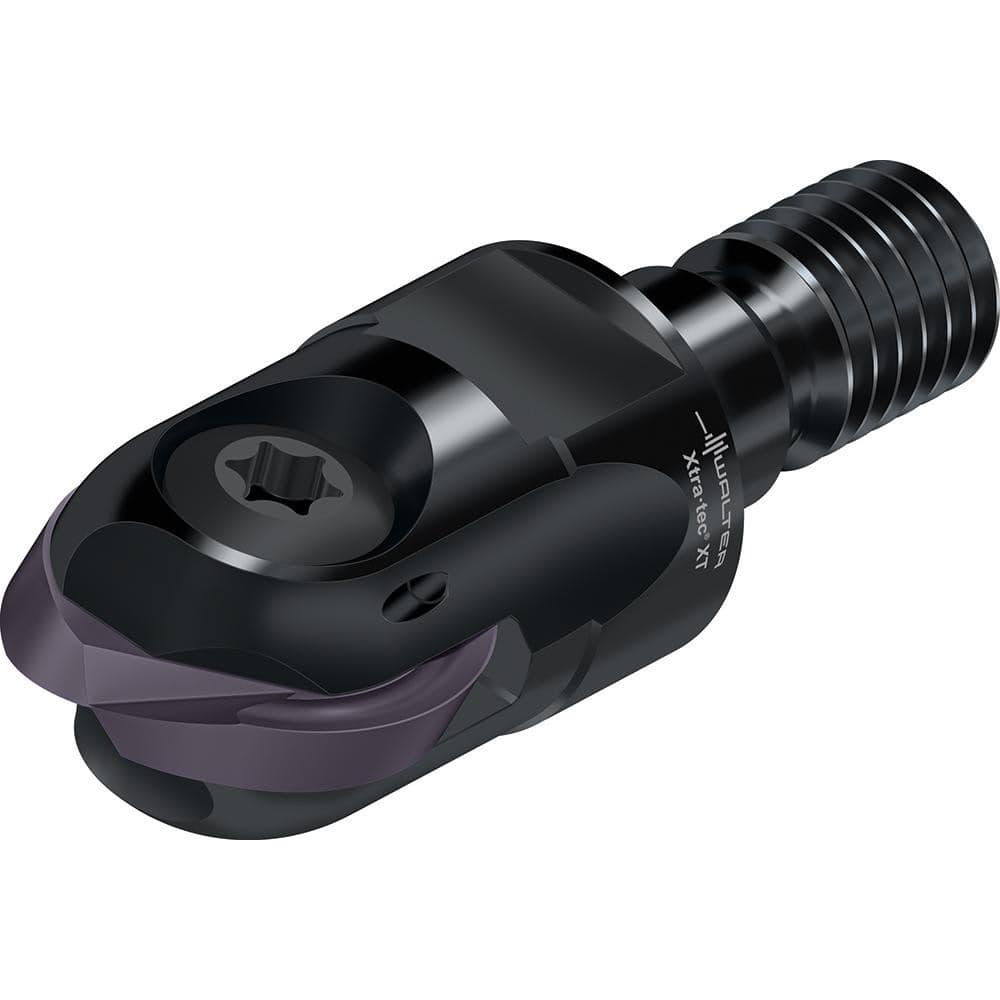

Indexable Ball Nose End Mills; Milling Diameter: 0.3940 in; Maximum Depth Of Cut: 0.1970 in; Shank Diameter: 0.3820 in; Shank Type: Modular; Compatible Insert Style: P3204; P3201; Compatible Insert Size Code: D10; Toolholder Style: M5460; Series: M5460-TC
Item #: 01120070
Brand: Walter
Model #: 8092825
Product Specifications
| Milling Diameter | 0.3940 in |
| Maximum Depth Of Cut | 0.1970 in |
| Shank Diameter | 0.3820 in |
| Shank Type | Modular |
| Compatible Insert Style | P3204; P3201 |
| Compatible Insert Size Code | D10 |
| Toolholder Style | M5460 |
| Series | M5460-TC |
| Overall Length (mm) | 1.55 |
| Overall Length (Decimal Inch) | 1.55 |
| Overall Length (Inch) | 1.55 |
| Modular Shank Size | M6 |
| Tool Application | Profile Milling |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 0.9840 in |
