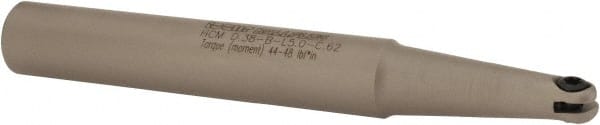

Iscar - 3/8" Cut Diam, 5/8" Shank Diam, 5" OAL, Indexable Ball Nose End Mill - 1" Head Length, Straight Shank, HCM D.38 Toolholder, HBR D.38, HCR D.38 Insert
Item #: 01141811
Brand: Iscar
Model #: 3103707
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBR D.38; HCR D.38 |
| Toolholder Style | HCM D.38 |
| Series | BallPlus |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.0000 |
