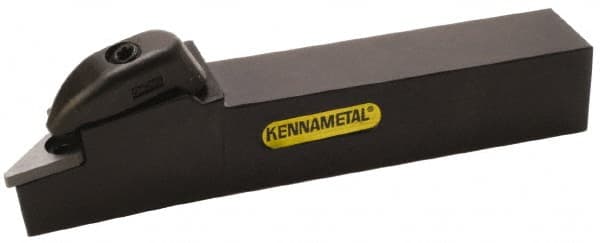

Kennametal - DVJN, Right Hand Cut, 3° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, VN.. Insert Compatibility, Series Kenclamp
Item #: 01157239
Brand: Kennametal
Model #: 2439399
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DVJN |
| Rake | Negative |
| Rake Angle | -9 |
| Series | Kenclamp |
| Lead Angle | 3 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | VN.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
