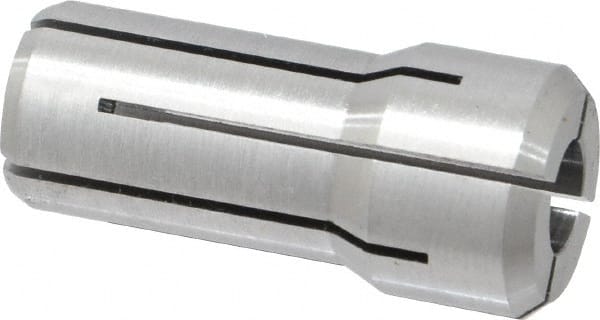

Kennametal - 0.2362 Inch, 5.2 to 6 mm Collet Capacity, Series DA200 Double Angle Collet - 1-3/16 Inch Overall Length, 0.539 Inch Overall Diameter, 0.001 Inch TIR
Item #: 01179282
Brand: Kennametal
Model #: 1014220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | DA Collet |
| Collet Series | DA200 |
| Size (Decimal Inch) | 0.2362 |
| Size (mm) | 6.00 |
| Overall Length (mm) | 30.18 |
| Overall Length (Decimal Inch) | 1.1880 |
| Overall Diameter (mm) | 13.69 |
| Overall Diameter (Decimal Inch) | 0.5390 |
| Minimum Collet Capacity (mm) | 5.20 |
| Maximum Collet Capacity (mm) | 6.00 |
| TIR (mm) | 0.0300 |
| TIR (Decimal Inch) | 0.001000 |
| PSC Code | 5136 |
