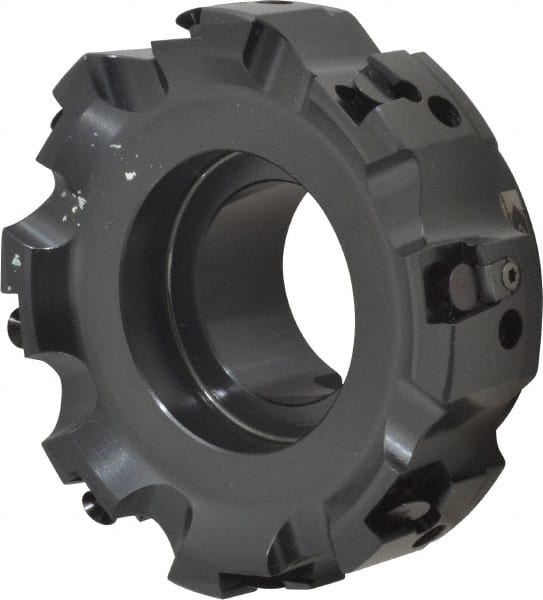

Kennametal - 8 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 0.236" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, SPHX 1205... Insert Compatibility, Series Fix-Perfect
Item #: 01187244
Brand: Kennametal
Model #: 1724419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 2.8818 |
| Keyway Width (Decimal Inch) | 0.6400 |
| Maximum Body Diameter (Decimal Inch) | 3.9060 |
| Number of Adjustable Pockets | 2 |
| Maximum RPM | 4298 |
| Pitch | Coarse |
