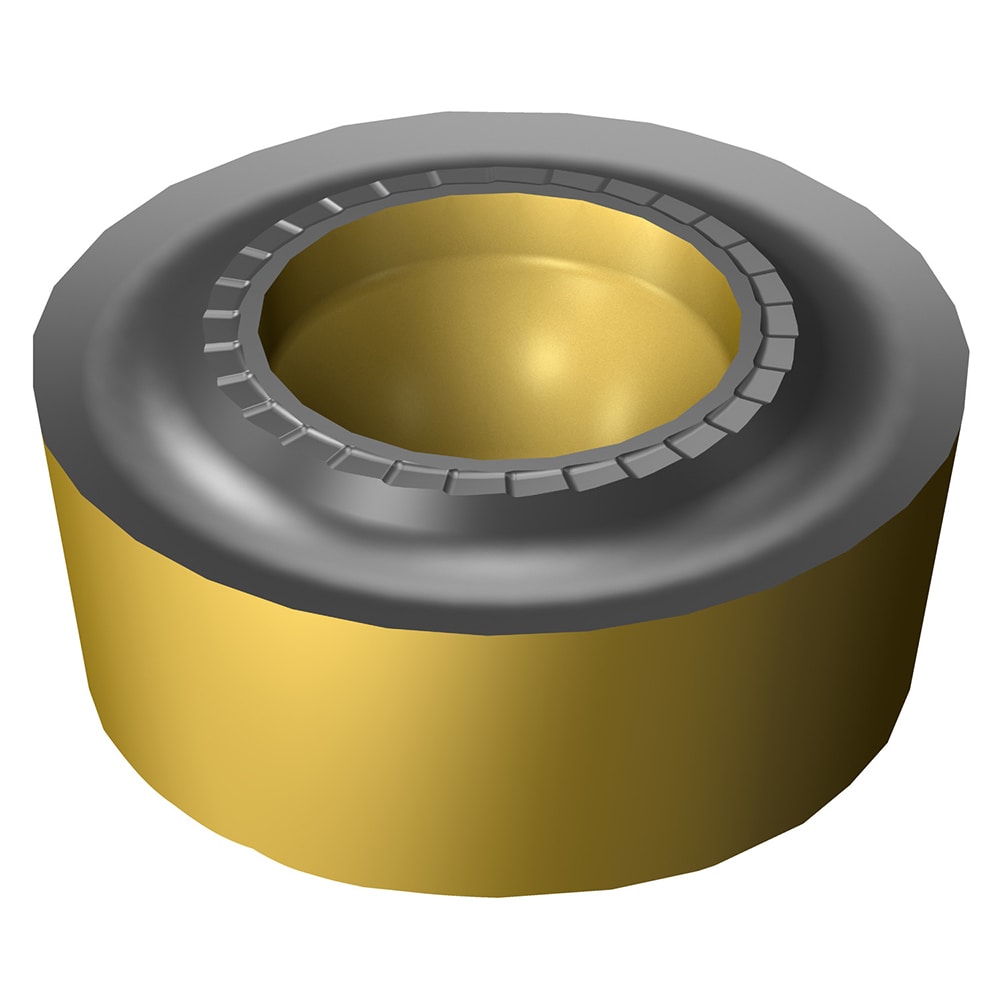

Turning Insert: RCMT 06 03 00-SM S205, Carbide
Item #: 17697780
Brand: Sandvik Coromant
Model #: 8003567
Product Specifications
| ANSI Insert Code | RCMT22 |
| ISO Insert Code | RCMT060300 |
| Relief Angle | 7 |
| Insert Style | RCMT |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Manufacturer Grade | S205 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | CoroTurn 107 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Insert Shape Code | R |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | N |
| Iso Code | RCMT 06 03 00-SM S205 |
| Manufacturers Catalog Number | RCMT 06 03 00-SM S205 |
| Chip Breaker | SM |
| ANSI Size Code | 22 |
| ISO Size Code | 060300 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 0603 |
