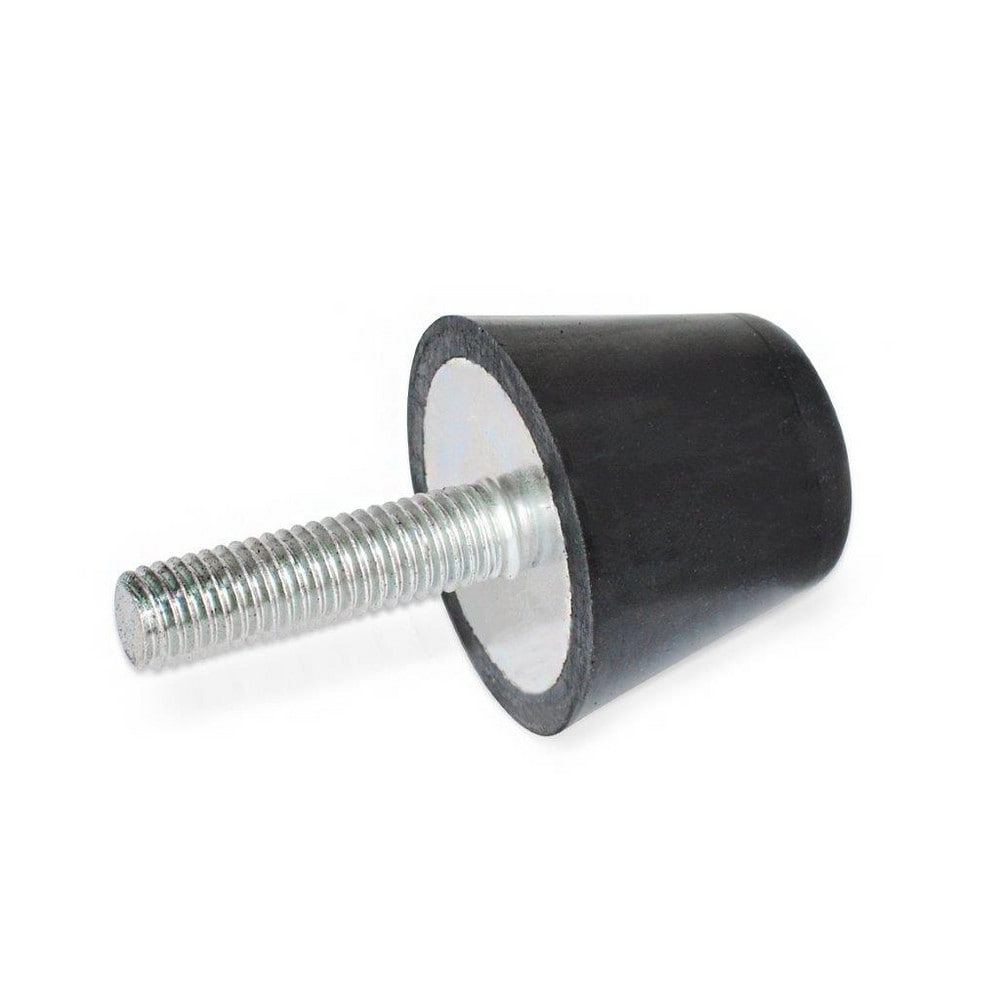

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 1620.00 N; Top Diameter: 50.00; Bottom Diameter: 32; Thread Size: 3/8-16; Overall Width: 50 mm
Item #: 71806376
Brand: J.W. Winco
Model #: 253-50-3/8X16-15.9-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 1620.00 N |
| Top Diameter | 50.00 |
| Bottom Diameter | 32 |
| Thread Size | 3/8-16 |
| Overall Width | 50 mm |
| Overall Diameter | 50 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.4100 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.587 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 58.9 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 1620.00 N |
| Top Diameter | 50.00 |
| Bottom Diameter | 32 |
| Thread Size | 3/8-16 |
| Overall Width | 50 mm |
| Overall Diameter | 50 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.4100 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.587 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 58.9 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71806376 |
| Mfr Part # | 253-50-3/8X16-15.9-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
