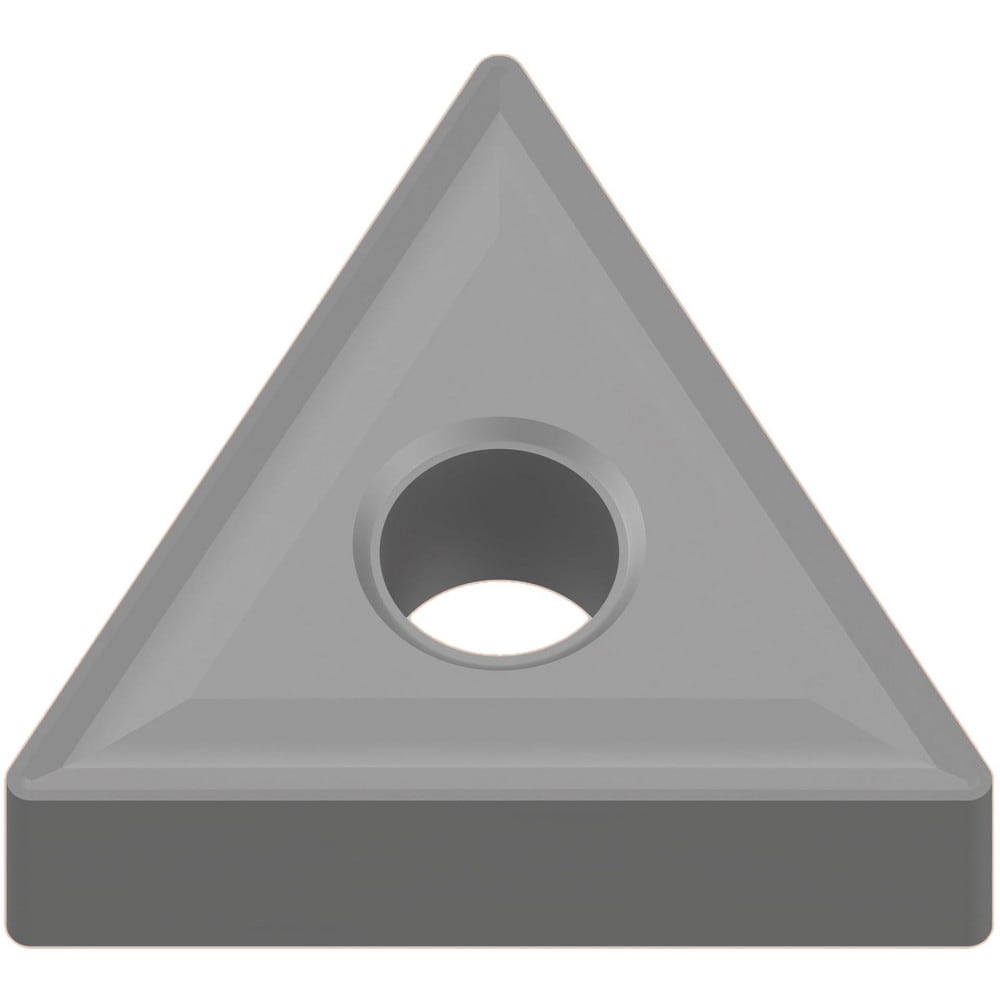

Turning Insert: TNMG666 UTI20T, Carbide
Item #: 05713219
Brand: Mitsubishi
Model #: 107965
Product Specifications
| ANSI Insert Code | TNMG666 |
| ISO Insert Code | TNMG330924 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 60 |
| Manufacturer Grade | UTI20T |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness | 9.53 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | Pressed |
| ANSI Size Code | 666 |
| ISO Size Code | 330924 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 6 |
