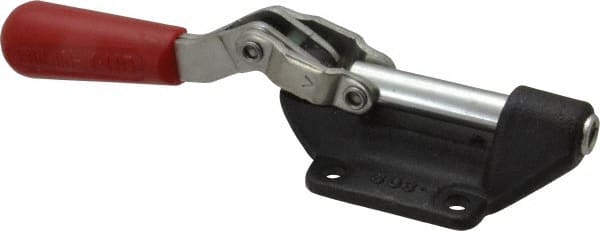

De-Sta-Co - 600 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 4 Mounting Holes, 0.27" Mounting Hole Diam, 0.47" Plunger Diam, Straight Handle
Item #: 01208859
Brand: De-Sta-Co
Model #: 603-M
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 2668.93 |
| Load Capacity (Lb.) | 600.00 |
| Plunger Travel (mm) | 31.75 |
| Plunger Travel (Decimal Inch) | 1.2500 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M8x1.25 |
| Plunger Centerline Height (mm) | 24.64 |
| Plunger Centerline Height (Decimal Inch) | 0.9700 |
| Plunger Diameter (Decimal Inch) | 0.4700 |
| Plunger Diameter (mm) | 11.18 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 4.8000 |
| Overall Height (Decimal Inch) | 3.4300 |
| Base Length (Decimal Inch) | 2.0000 |
| Base Width (Decimal Inch) | 1.8800 |
| Handle Color | Red |
| Number of Mounting Holes | 4 |
| Length Distance Between Mount Holes (mm) | 36.58 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.4400 |
| Width Distance Between Mount Holes (mm) | 33.27 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.3100 |
| Mounting Hole Diameter (mm) | 6.86 |
| Mounting Hole Diameter (Decimal Inch) | 0.2700 |
| Base Width (mm) | 47.75 |
| Base Length (mm) | 50.80 |
| Overall Length (mm) | 121.92 |
| Overall Height (mm) | 87.12 |
| Maximum Mechanical Advantage | 23:1 (Pushing); 34:1 (Pulling) |
