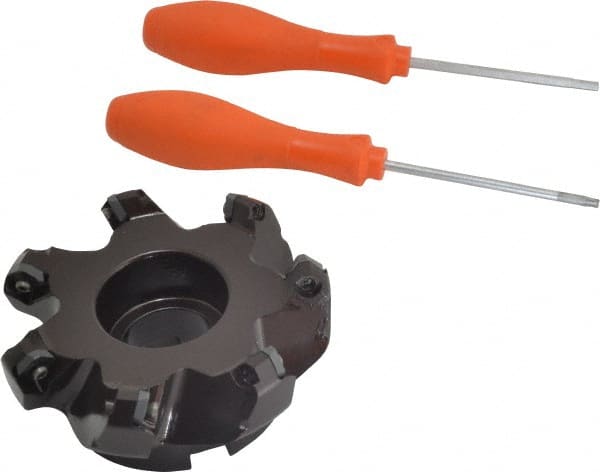

Kennametal - 100.08mm Cut Diam, 1-1/4" Arbor Hole, 6.6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, SEKT 1404... Insert, Right Hand Cut, 7 Flutes, Series KSSM
Item #: 01230424
Brand: Kennametal
Model #: 1817933
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.08 |
| Cutting Diameter (Decimal Inch) | 3.9400 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | SEKT 1404... |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | KSSISR |
| Number of Flutes | 7 |
| Hub Diameter (Decimal Inch) | 2.8799 |
| Hub Diameter (mm) | 73.15 |
| Keyway Width (Decimal Inch) | 0.5200 |
| Maximum Body Diameter (Decimal Inch) | 4.4770 |
| Maximum RPM | 16000 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
