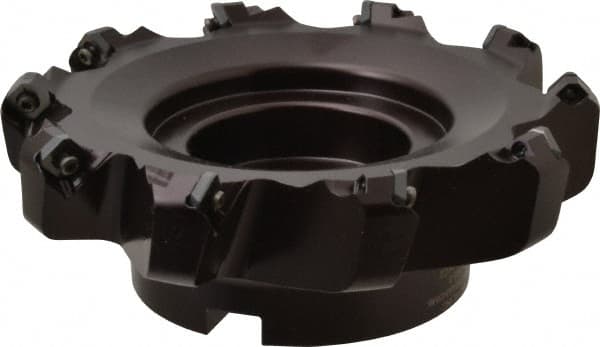

Kennametal - 160.02mm Cut Diam, 1-1/2" Arbor Hole, 6.6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, SEKT 1404... Insert, Right Hand Cut, 10 Flutes, Series KSSM
Item #: 01230465
Brand: Kennametal
Model #: 1817937
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.02 |
| Cutting Diameter (Decimal Inch) | 6.3000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4800 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SEKT 1404... |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | KSSISR |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 3.8098 |
| Hub Diameter (mm) | 96.77 |
| Keyway Width (Decimal Inch) | 0.6400 |
| Maximum Body Diameter (Decimal Inch) | 6.8360 |
| Maximum RPM | 12500 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
