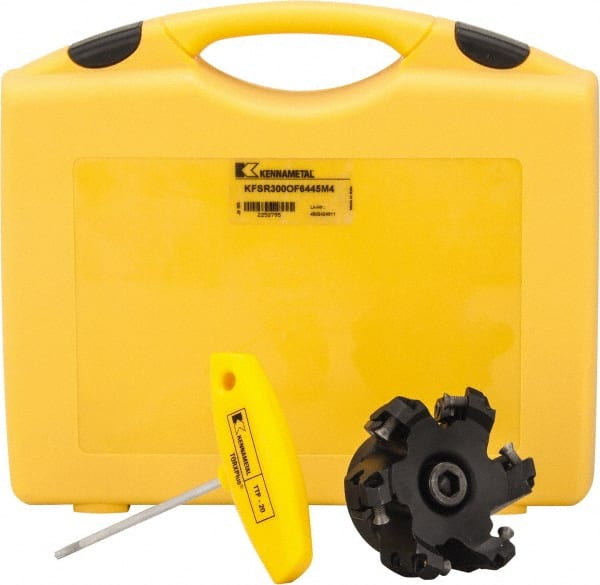

Kennametal - 3" Cut Diam, 1" Arbor Hole, 5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 6 Inserts, OF.T64 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series KSOM
Item #: 01230564
Brand: Kennametal
Model #: 2252795
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 43 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | OF.T64 |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | KFSR |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 2.1890 |
| Hub Diameter (mm) | 55.60 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Maximum Body Diameter (Decimal Inch) | 3.4360 |
| Maximum RPM | 7900 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
