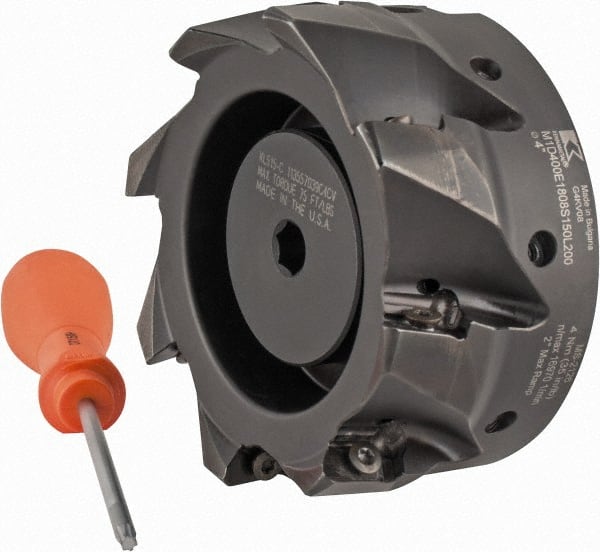

Kennametal - 8 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 18.03mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, EC18.., EP18.. Insert Compatibility, Through Coolant, Series Mill 1-18
Item #: 01230762
Brand: Kennametal
Model #: 2267644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | EC18.., EP18.. |
| Series | Mill 1-18 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 92.08 |
| Hub Diameter (Decimal Inch) | 3.6252 |
| Keyway Width (mm) | 16.36 |
| Keyway Width (Decimal Inch) | 0.6441 |
| Maximum Body Diameter (Decimal Inch) | 3.8940 |
| Maximum RPM | 16970 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
