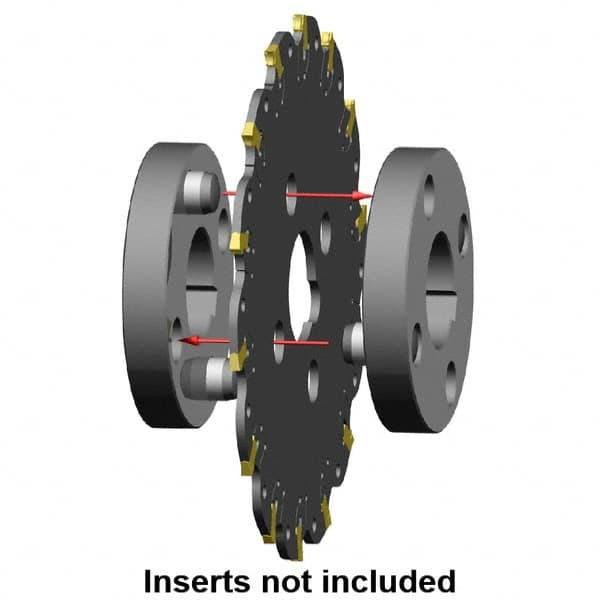

Kennametal - Arbor Hole Connection, 1/8" Cutting Width, 1-7/16" Depth of Cut, 6" Cutter Diam, 1-1/4" Hole Diam, 14 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 3118.. Insert
Item #: 01231380
Brand: Kennametal
Model #: 1247757
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.20 |
| Cutting Width (Decimal Inch) | 0.1260 |
| Maximum Depth of Cut (Decimal Inch) | 1.4380 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 14 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | OD 3118.. |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 2000 |
| Minimum Cutting Width (Decimal Inch) | 0.1260 |
| Keyway Width (Inch) | 5/16 |
| Keyway Width (Decimal Inch) | 0.3125 |
| Keyway Width (mm) | 7.93 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 0.0950 |
| Complete Insert Compatibility1 | OD 3118__ |
