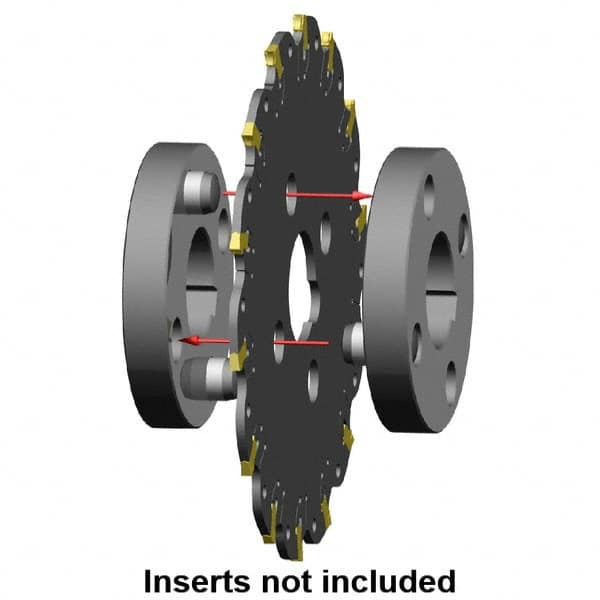

Kennametal - Arbor Hole Connection, 0.245" Cutting Width, 3-1/4" Depth of Cut, 10" Cutter Diam, 2" Hole Diam, 24 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 01231398
Brand: Kennametal
Model #: 1247785
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 6.22 |
| Cutting Width (Decimal Inch) | 0.2450 |
| Maximum Depth of Cut (Decimal Inch) | 3.2500 |
| Cutter Diameter (mm) | 254.00 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Hole Diameter (mm) | 50.80 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 24 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 1300 |
| Minimum Cutting Width (Decimal Inch) | 0.2450 |
| Keyway Width (Inch) | 1/2 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Keyway Width (mm) | 12.70 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (mm) | 5.40 |
| Cutter Body Width (Decimal Inch) | 0.2130 |
| Complete Insert Compatibility1 | 3.90016 ECGD; 3.90016 SNGB; 3.90016 SNGD; 3.90022 SNGB; 3.90022 SNGD; 3.90040 ECGD; 3.90040 SNGB; 3.90040 SNGD; 3.90050 SNGB; 3.90060 SNGB |
