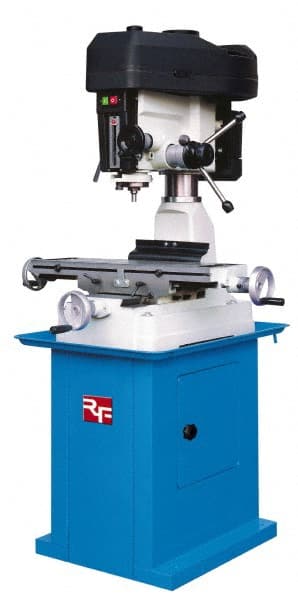

Rong Fu - 3 Phase, 16-3/8" Swing, Step Pulley Mill Drill Machine - 28-1/2" Table Length x 8-1/4" Table Width, 18-1/8" Longitudinal Travel, 6-1/4" Cross Travel, 12 Spindle Speeds, 1 hp, 230 Volts
Item #: 01241512
Brand: Rong Fu
Model #: ***BDS ITEM***
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. Three-phase lines provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Swing Distance (Inch) | 16-3/8 |
| Phase | 3 |
| Table Length (Inch) | 28-1/2 |
| Table Width (Inch) | 8-1/4 |
| Longitudinal Travel (Inch) | 18-1/8 |
| Cross Travel (Inch) | 6-1/4 |
| Number of Spindle Speeds | 12 |
| Minimum Spindle Speed (RPM) | 120.00 |
| Maximum Spindle Speed (RPM) | 2500.00 |
| Spindle Taper Size | R8 |
| Horsepower (HP) | 1.00 |
| Voltage | 230 |
| Includes | Stand (MSC 09519919) |
