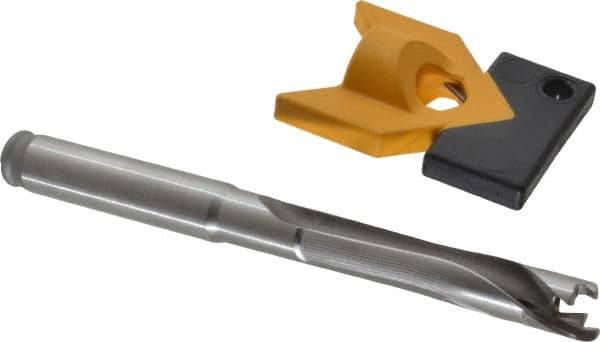

Kennametal - 9 to 9.49mm Diam, 5xD, 47.5mm Max Depth, 3/8" Shank Diam, 57.91mm Flute, 104.78mm OAL, Replaceable Tip Drill - KTIP03580HP Insert, H Seat Size, Series KenTIP
Item #: 01242593
Brand: Kennametal
Model #: 2250675
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3543 |
| Maximum Drill Diameter (mm) | 9.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.3736 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.8700 |
| Maximum Drill Depth (mm) | 47.50 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03580HP |
| Insert Seat Size | H |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0620 |
| Flute Length (mm) | 57.91 |
| Flute Length (Decimal Inch) | 2.2799 |
| Overall Length (mm) | 104.78 |
| Overall Length (Decimal Inch) | 4.1252 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
