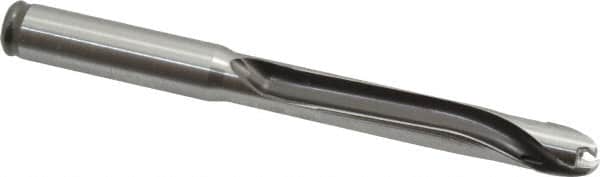

Kennametal - 10 to 10.49mm Diam, 5xD, 52.58mm Max Depth, 7/16" Shank Diam, 64.77mm Flute, 117.48mm OAL, Replaceable Tip Drill - KTIP03946HP Insert, J Seat Size, Series KenTIP
Item #: 01242627
Brand: Kennametal
Model #: 2250678
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 10.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Diameter (mm) | 10.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0700 |
| Maximum Drill Depth (mm) | 52.58 |
| Shank Diameter (mm) | 11.11 |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Insert Style | KTIP03946HP |
| Insert Seat Size | J |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0680 |
| Flute Length (mm) | 64.77 |
| Flute Length (Decimal Inch) | 2.5500 |
| Overall Length (mm) | 117.48 |
| Overall Length (Decimal Inch) | 4.6252 |
| Shank Length (mm) | 42.42 |
| Shank Length (Decimal Inch) | 1.6700 |
