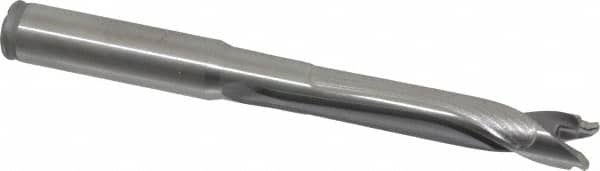

Kennametal - 11.5 to 11.99mm Diam, 5xD, 59.94mm Max Depth, 1/2" Shank Diam, 73.66mm Flute, 127mm OAL, Replaceable Tip Drill - KTIP04531HP Insert, M Seat Size, Series KenTIP
Item #: 01242817
Brand: Kennametal
Model #: 2250681
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.3600 |
| Maximum Drill Depth (mm) | 59.94 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | KTIP04531HP |
| Insert Seat Size | M |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0780 |
| Flute Length (mm) | 73.66 |
| Flute Length (Decimal Inch) | 2.9000 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
