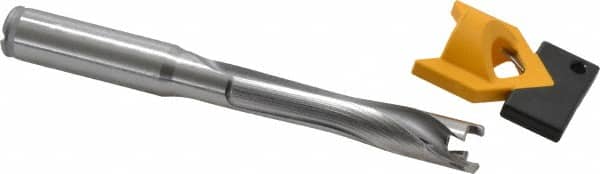

Kennametal - 13 to 13.49mm Diam, 5xD, 67.56mm Max Depth, 9/16" Shank Diam, 82.3mm Flute, 133.35mm OAL, Replaceable Tip Drill - KTIP05156HP Insert, P Seat Size, Series KenTIP
Item #: 01242841
Brand: Kennametal
Model #: 2250685
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.6600 |
| Maximum Drill Depth (mm) | 67.56 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Insert Style | KTIP05156HP |
| Insert Seat Size | P |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0890 |
| Flute Length (mm) | 82.30 |
| Flute Length (Decimal Inch) | 3.2402 |
| Overall Length (mm) | 133.35 |
| Overall Length (Decimal Inch) | 5.2500 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
