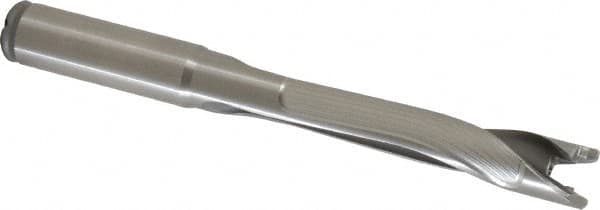

Kennametal - 13.5 to 13.99mm Diam, 5xD, 69.85mm Max Depth, 9/16" Shank Diam, 86.11mm Flute, 139.7mm OAL, Replaceable Tip Drill - KTIP05469HP Insert, Q Seat Size, Series KenTIP
Item #: 01243161
Brand: Kennametal
Model #: 2250686
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 13.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.7500 |
| Maximum Drill Depth (mm) | 69.85 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Insert Style | KTIP05469HP |
| Insert Seat Size | Q |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0940 |
| Flute Length (mm) | 86.11 |
| Flute Length (Decimal Inch) | 3.3902 |
| Overall Length (mm) | 139.70 |
| Overall Length (Decimal Inch) | 5.5000 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
