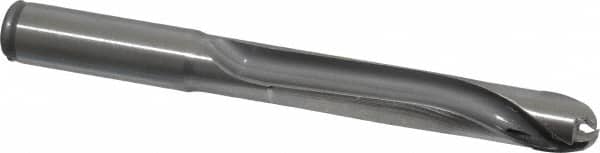

Kennametal - 15 to 15.99mm Diam, 5xD, 80.01mm Max Depth, 5/8" Shank Diam, 95.5mm Flute, 152.4mm OAL, Replaceable Tip Drill - KTIP05938HP Insert, T Seat Size, Series KenTIP
Item #: 01243195
Brand: Kennametal
Model #: 2250689
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Maximum Drill Depth (mm) | 80.01 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | KTIP05938HP |
| Insert Seat Size | T |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1020 |
| Flute Length (mm) | 95.50 |
| Flute Length (Decimal Inch) | 3.7598 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Length (mm) | 48.51 |
| Shank Length (Decimal Inch) | 1.9100 |
