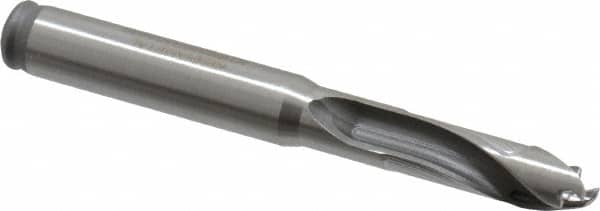

Kennametal - 8.5 to 8.99mm Diam, 3xD, 26.92mm Max Depth, 3/8" Shank Diam, 35.05mm Flute, 82.55mm OAL, Replaceable Tip Drill - KTIP03390HP Insert, G Seat Size, Series KenTIP
Item #: 01243237
Brand: Kennametal
Model #: 2250705
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 8.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Maximum Drill Depth (mm) | 26.92 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03390HP |
| Insert Seat Size | G |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0580 |
| Flute Length (mm) | 35.05 |
| Flute Length (Decimal Inch) | 1.3799 |
| Overall Length (mm) | 82.55 |
| Overall Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
