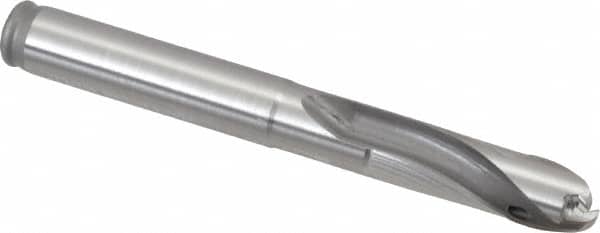

Kennametal - 9.5 to 9.99mm Diam, 3xD, 29.97mm Max Depth, 3/8" Shank Diam, 39.12mm Flute, 85.73mm OAL, Replaceable Tip Drill - KTIP03750HP Insert, I Seat Size, Series KenTIP
Item #: 01243260
Brand: Kennametal
Model #: 2250707
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (mm) | 9.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3933 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.1800 |
| Maximum Drill Depth (mm) | 29.97 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03750HP |
| Insert Seat Size | I |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0650 |
| Flute Length (mm) | 39.12 |
| Flute Length (Decimal Inch) | 1.5402 |
| Overall Length (mm) | 85.73 |
| Overall Length (Decimal Inch) | 3.3752 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
