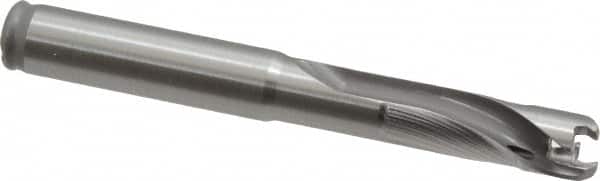

Kennametal - 10.5 to 10.99mm Diam, 3xD, 33.02mm Max Depth, 7/16" Shank Diam, 43.43mm Flute, 95.25mm OAL, Replaceable Tip Drill - KTIP04219HP Insert, K Seat Size, Series KenTIP
Item #: 01243286
Brand: Kennametal
Model #: 2250710
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 10.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4327 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.3000 |
| Maximum Drill Depth (mm) | 33.02 |
| Shank Diameter (mm) | 11.11 |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Insert Style | KTIP04219HP |
| Insert Seat Size | K |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0730 |
| Flute Length (mm) | 43.43 |
| Flute Length (Decimal Inch) | 1.7098 |
| Overall Length (mm) | 95.25 |
| Overall Length (Decimal Inch) | 3.7500 |
| Shank Length (mm) | 42.42 |
| Shank Length (Decimal Inch) | 1.6700 |
