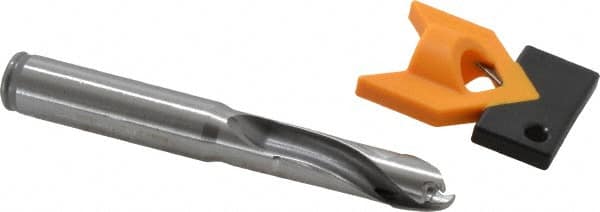

Kennametal - 11.5 to 11.99mm Diam, 3xD, 36.07mm Max Depth, 1/2" Shank Diam, 47.5mm Flute, 98.43mm OAL, Replaceable Tip Drill - KTIP04531HP Insert, M Seat Size, Series KenTIP
Item #: 01243310
Brand: Kennametal
Model #: 2250712
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.4200 |
| Maximum Drill Depth (mm) | 36.07 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | KTIP04531HP |
| Insert Seat Size | M |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0780 |
| Flute Length (mm) | 47.50 |
| Flute Length (Decimal Inch) | 1.8701 |
| Overall Length (mm) | 98.43 |
| Overall Length (Decimal Inch) | 3.8752 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
