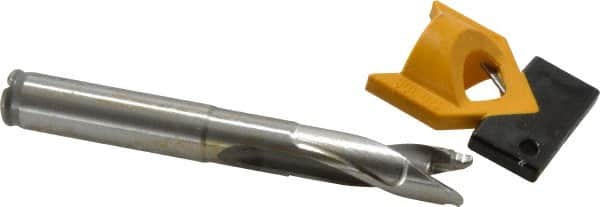

Kennametal - 12.5 to 12.99mm Diam, 3xD, 39.12mm Max Depth, 1/2" Shank Diam, 51.82mm Flute, 104.78mm OAL, Replaceable Tip Drill - KTIP05000HP Insert, O Seat Size, Series KenTIP
Item #: 01243336
Brand: Kennametal
Model #: 2250724
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 12.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5400 |
| Maximum Drill Depth (mm) | 39.12 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | KTIP05000HP |
| Insert Seat Size | O |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0860 |
| Flute Length (mm) | 51.82 |
| Flute Length (Decimal Inch) | 2.0402 |
| Overall Length (mm) | 104.78 |
| Overall Length (Decimal Inch) | 4.1252 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
