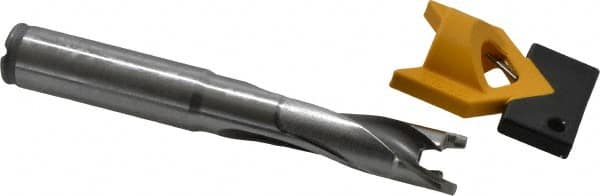

Kennametal - 13.5 to 13.99mm Diam, 3xD, 41.91mm Max Depth, 9/16" Shank Diam, 55.63mm Flute, 107.95mm OAL, Replaceable Tip Drill - KTIP05469HP Insert, Q Seat Size, Series KenTIP
Item #: 01243369
Brand: Kennametal
Model #: 2250727
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 13.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.6500 |
| Maximum Drill Depth (mm) | 41.91 |
| Shank Diameter (mm) | 14.29 |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Insert Style | KTIP05469HP |
| Insert Seat Size | Q |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0940 |
| Flute Length (mm) | 55.63 |
| Flute Length (Decimal Inch) | 2.1902 |
| Overall Length (mm) | 107.95 |
| Overall Length (Decimal Inch) | 4.2500 |
| Shank Length (mm) | 45.47 |
| Shank Length (Decimal Inch) | 1.7900 |
