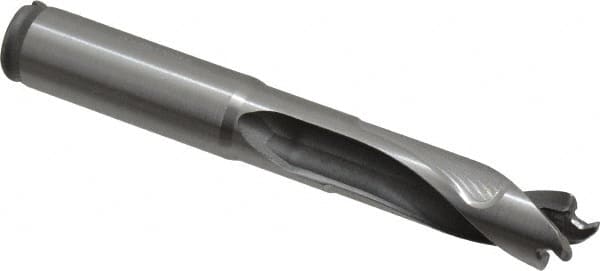

Kennametal - 15 to 15.99mm Diam, 3xD, 48.01mm Max Depth, 5/8" Shank Diam, 61.72mm Flute, 120.65mm OAL, Replaceable Tip Drill - KTIP05938HP Insert, T Seat Size, Series KenTIP
Item #: 01243393
Brand: Kennametal
Model #: 2250730
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.8900 |
| Maximum Drill Depth (mm) | 48.01 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | KTIP05938HP |
| Insert Seat Size | T |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1020 |
| Flute Length (mm) | 61.72 |
| Flute Length (Decimal Inch) | 2.4299 |
| Overall Length (mm) | 120.65 |
| Overall Length (Decimal Inch) | 4.7500 |
| Shank Length (mm) | 48.51 |
| Shank Length (Decimal Inch) | 1.9100 |
