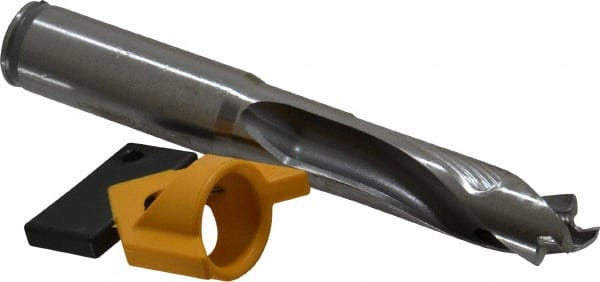

Kennametal - 16 to 16.99mm Diam, 3xD, 51.05mm Max Depth, 11/16" Shank Diam, 65.79mm Flute, 123.83mm OAL, Replaceable Tip Drill - KTIP1600HPM Insert, U Seat Size, Series KenTIP
Item #: 01243419
Brand: Kennametal
Model #: 2250731
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.0100 |
| Maximum Drill Depth (mm) | 51.05 |
| Shank Diameter (mm) | 17.46 |
| Shank Diameter (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Insert Style | KTIP1600HPM |
| Insert Seat Size | U |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1090 |
| Flute Length (mm) | 65.79 |
| Flute Length (Decimal Inch) | 2.5902 |
| Overall Length (mm) | 123.83 |
| Overall Length (Decimal Inch) | 4.8752 |
| Shank Length (mm) | 48.51 |
| Shank Length (Decimal Inch) | 1.9100 |
