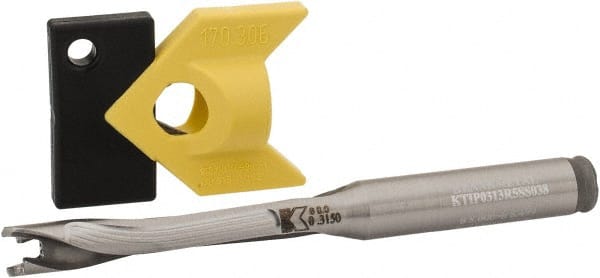

Kennametal - 7.94 to 8.49mm Diam, 5xD, 42.42mm Max Depth, 3/8" Shank Diam, 2.05" Flute, 98.43mm OAL, Replaceable Tip Drill - KTIP03125HP Insert, F Seat Size, Series KenTIP
Item #: 01243427
Brand: Kennametal
Model #: 2269611
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 7.94 |
| Minimum Drill Diameter (Decimal Inch) | 0.3126 |
| Maximum Drill Diameter (mm) | 8.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.3343 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.6700 |
| Maximum Drill Depth (mm) | 42.42 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03125HP |
| Insert Seat Size | F |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0540 |
| Flute Length (Decimal Inch) | 2.0500 |
| Overall Length (mm) | 98.43 |
| Overall Length (Decimal Inch) | 3.8752 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
