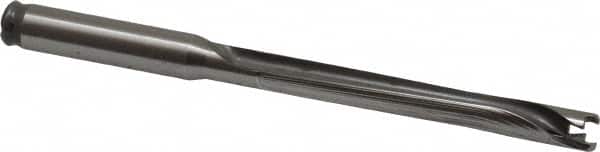

Kennametal - 7.94 to 8.49mm Diam, 8xD, 68mm Max Depth, 3/8" Shank Diam, 78.8mm Flute, 123.83mm OAL, Replaceable Tip Drill - KTIP03125HP Insert, F Seat Size, Series KenTIP
Item #: 01243443
Brand: Kennametal
Model #: 2542068
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 7.94 |
| Minimum Drill Diameter (Decimal Inch) | 0.3126 |
| Maximum Drill Diameter (mm) | 8.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.3343 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 2.6800 |
| Maximum Drill Depth (mm) | 68.00 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Style | KTIP03125HP |
| Insert Seat Size | F |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 1.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.0472 |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.0550 |
| Flute Length (mm) | 78.80 |
| Flute Length (Decimal Inch) | 3.1024 |
| Overall Length (mm) | 123.83 |
| Overall Length (Decimal Inch) | 4.8752 |
| Shank Length (mm) | 40.39 |
| Shank Length (Decimal Inch) | 1.5900 |
